Octal To Binary Conversion | C Program

Octal to Binary Conversion in C

Here, in this page we will discuss about octal to binary conversion in C. There are 2 approaches of converting an octal number into a binary number like:

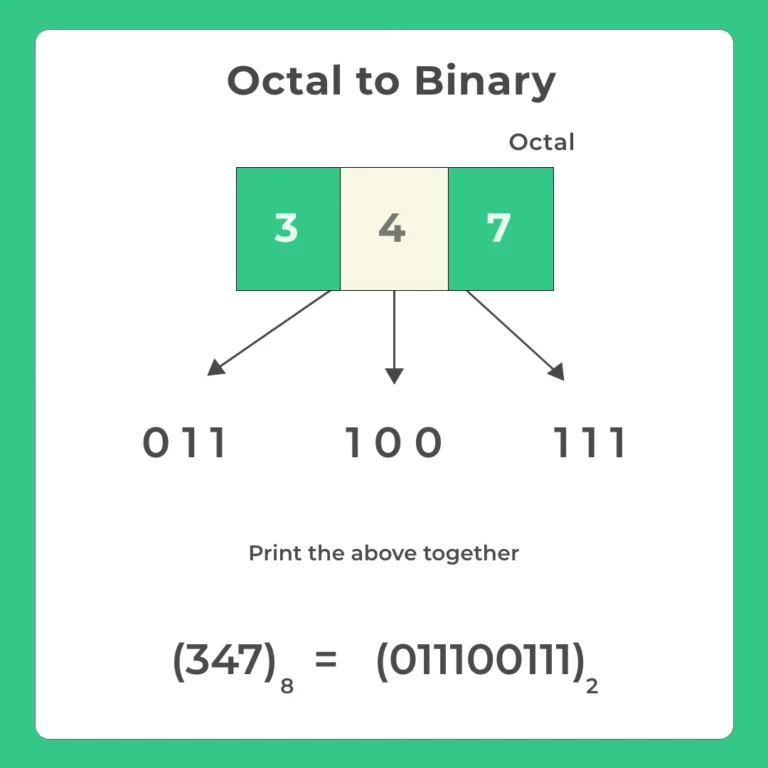

  • Write 3 digit binary number for all the digits of a number from left to right.
  • first convert octal to decimal and then decimal to binary .

We will discuss the algorithm for both approaches.

Example: Octal number is 374 = 011111100  is its equivalent in binary

Octal to binary conversion in C

Algorithm for first approach:-

Step 1: Start

Step 2: Ask the user to enter an octal number as an input.

Step 3: Store the inserted number in the array octalnum.

Step 4: With the help of switch statement, evaluate every number of the octal number

Step 5: Print the equal binary value in a 3 digit number (Eg. 000)

Step 6: Do step 4 under the while loop.

Step 7: Stop

Binary Representation :

  • 0 => 000
  • 1 => 001
  • 2 => 010
  • 3 => 011
  • 4 => 100
  • 5 => 101
  • 6 => 110
  • 7 => 111
Competitive Coding Techniques

Program to convert octal number to binary number:

/*
 * C Program to Convert Octal to Binary number
 */
#include<stdio.h>
#include<conio.h>
#define MAX 1000 int main() {     char octalnum[MAX];
//For initialize     long i = 0;
//taking user input of octalnum     printf("Insert an octal number: ");     scanf("%s", octalnum);     printf("Equivalent binary number: ");     while (octalnum[i])     {
//use switch case for multiple condition         switch (octalnum[i])         {         case '0':             printf("000"); break;         case '1':             printf("001"); break;         case '2':             printf("010"); break;         case '3':             printf("011"); break;         case '4':             printf("100"); break;         case '5':             printf("101"); break;         case '6':             printf("110"); break;         case '7':             printf("111"); break;         //for invalid case
default:             printf("\n Invalid octal digit %c ", octalnum[i]);             return 0;         }         i++;     }     return 0; }

Output

Insert an octal number: a
Equivalent binary value:
Invalid octal digit a
Insert an octal number: 160
Equivalent binary value: 001110000

Algorithm for second approach:-

  1. User gives an input(octal number).
  2. Input is stored in an int type variable say octal.
  3. A function convert() is called using octal as parameter.
    1. A loop is started to convert octal into a decimal number
      1. Digits of octal are extracted one by one starting from right.

                               int rem = octal%10;

                           2. Extracted digits are multiplied with proper base i.e. power of 8.

                               int res = rem*pow(8,i);

                           3. After multiplying each digit with proper base the results are added and stored in another variable say decimal.

                              decimal += res;

                 2. Another loop is started to convert decimal into a binary number

      1. The number is divided by 2 and the remainder is stored.

                               rem = decimal%2;

                          2. The binary number is constructed using the remainder.

                              binary += rem*i;

                3. The loop will run until the number is not equal to 0.

                    while (n!=0)

     4. binary is returned and printed as output.

Code in C

    #include <stdio.h>

//Function to convert octal to binary

long convert(int octal)

{

int decimal = 0, i = 0;

long binary = 0;

//converting octal to decimal

while(octal != 0)

{

int rem = octal%10;

int res=rem * pow(8,i);

decimal += res;

i++;

octal/=10;

}

i = 1;

//converting decimal to binary

while (decimal != 0)

{

int rem = decimal % 2;

binary += rem * i;

decimal /= 2;

i *= 10;

}

return binary;

}

//main program

int main()

{

int octal;

printf( "Enter an octal number: ");

//user input

scanf("%d", &octal);

//function call

long binary = convert(octal);

//printing output

printf(" %d in octal = %d in binary", octal, binary);

return 0;

}
Output :

Enter an octal number: 74

74 in octal = 111100 in binary
