Bottom Up Approach in Software Engineering

April 14, 2025

What is a Bottom up Approach in Software Engineering?

In the bottom-up approach to software development, development begins with the lowest-level components of the system and progresses upwards towards higher-level components. This approach is the opposite of the top-down approach, in which development begins with high-level components and works downward towards lower-level components.

The bottom-up approach is often used when building systems that have a lot of dependencies between components, as it allows developers to focus on building and testing each component individually before integrating it into the larger system. This can help to reduce the complexity of the development process and make it easier to identify and fix problems as they arise.

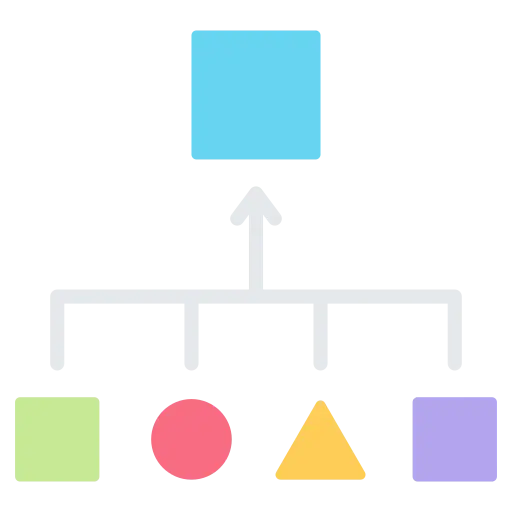

Bottom Down Approach in Software Engineering

Processes involved in Bottom up Approach

In a bottom-up approach, a system is designed or analyzed by starting with its individual components and then combining them to create a larger system. This approach is often used in fields such as computer science and engineering, where a system is broken down into smaller parts that can be more easily understood and managed.

Here are some of the processes involved in a bottom-up approach:

Bottom Down SDLC Approach

Designing and implementing low-level components:

The first step in the bottom-up approach is to design and implement the lowest-level components of the system, such as functions or routines. These components are typically simple and focused on a specific task.

Testing and debugging low-level components:

Once the low-level components have been implemented, they are tested and debugged to ensure that they are working correctly.

Integrating low-level components:

After the low-level components have been tested and debugged, they are integrated into larger components. These larger components may include modules, classes, or subsystems.

Testing and debugging higher-level components:

The higher-level components are then tested and debugged to ensure that they are working correctly with the low-level components that they depend on.

Integrating higher-level components:

The higher-level components are then integrated into even larger components or subsystems. This process continues until the entire system has been built and tested.

Testing and debugging the complete system:

Once the entire system has been built, it is thoroughly tested and debugged to ensure that it is functioning correctly.

Software Development Life Cycle (SDLC) Models

Waterfall Model

Agile Model

Spiral Model

RAD Model

Prototype Model

Iterative Waterfall Model

Top Down Approach

Big-Bang Approach

Hybrid Approach

Benefits of Bottom Up Approach in Software Engineering

  • It allows for the development of specific solutions to specific problems, rather than relying on preconceived or abstract ideas. This can lead to more practical and effective solutions.
  • It is a more incremental and incremental approach, which can make it easier to implement and test changes.
  • It can be more flexible and adaptable, as it allows for the incorporation of new information and the modification of solutions as needed.
  • It is often more efficient, as it focuses on the most fundamental and necessary components first, rather than trying to build a complete system all at once.
  • It can be more reliable, as it is based on a solid foundation of well-understood and tested components.
Advantages of Bottom Down Approach

Drawbacks of Bottom up Approach in Software Engineering

Overall, a bottom-up approach can be useful in certain situations, but it may not always be the best choice. It’s important to consider the specific needs and goals of a project before deciding which approach to use.

Why Use the Bottom-Up Approach in Software Engineering?

The bottom up approach in software engineering is a development methodology where you start building the smallest, most fundamental components (like utility functions, modules, or classes) first, and then integrate them into larger and more complex systems. Here’s why this approach can be especially useful:

1. Reusability of Components

  • By designing and testing small modules independently, you can reuse them across different projects or parts of the application.
  • These components become reliable building blocks for future development.

2. Thorough Testing of Core Units

  • Since development starts with small, self contained units, it’s easier to test and debug them early.
  • This reduces the likelihood of bugs propagating into higher level systems.

3. Parallel Development

  • Different teams can work on different modules simultaneously without needing the full system design in place.
  • This increases development speed and flexibility.

4. Builds on Proven Elements

  • Higher level functionalities are constructed using components that have already been tested and validated.
  • This leads to more robust and stable software.

5. Encourages Modular Design

  • Promotes the development of software in a modular and encapsulated way.
  • Easier maintenance, better code organization, and scalability.

 6. Ideal for Prototype or Library-First Projects

  • Great when building software around a known set of tools, libraries, or APIs.
  • Useful in domains like game engines, compilers, or reusable frameworks.

Bottom up approach in software engineering examples

In software engineering, the bottom up approach refers to a development methodology where system components or low level modules are developed first, and then integrated to form higher level systems. Here are some examples of how the bottom up approach is applied:

1. Library or API Development

  • Example: A team first creates and tests utility libraries (e.g., math functions, string manipulation tools), and then builds a larger system (e.g., a game engine or a web framework) using these components.
  • Use case: Reusable code components can be developed and verified independently.

2. Microservices Architecture

  • Example: In a distributed system, individual microservices (like authentication, payment processing, or order management) are built and tested separately. Once stable, they are integrated into the full application.
  • Use case: Each microservice handles a specific business function and can be deployed independently.

3. Object Oriented Programming (OOP)

  • Example: Developers first design and implement individual classes (e.g., User, Product, Order) with their own methods and properties. These are then composed to build more complex systems like e-commerce platforms.
  • Use case: Focuses on reusable and modular class design.

4. Compiler Construction

  • Example: Start by building the lexer (tokenizer), then the parser, followed by semantic analysis, code generation, and finally optimization phases.
  • Use case: Each component builds on top of the previous one.

FAQs

It allows developers to build reliable systems by first developing and testing individual modules, ensuring component quality before integration.

Use it when reusable components are available or when early validation of low-level functions is critical to project success.



Bottom Up starts with building and testing low-level modules, while Top Down begins with designing the overall system and breaking it into smaller parts.
